YEASTAR
Yeastar YST-O2 2 FXO Port Module S-Series VoIP PBX
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW

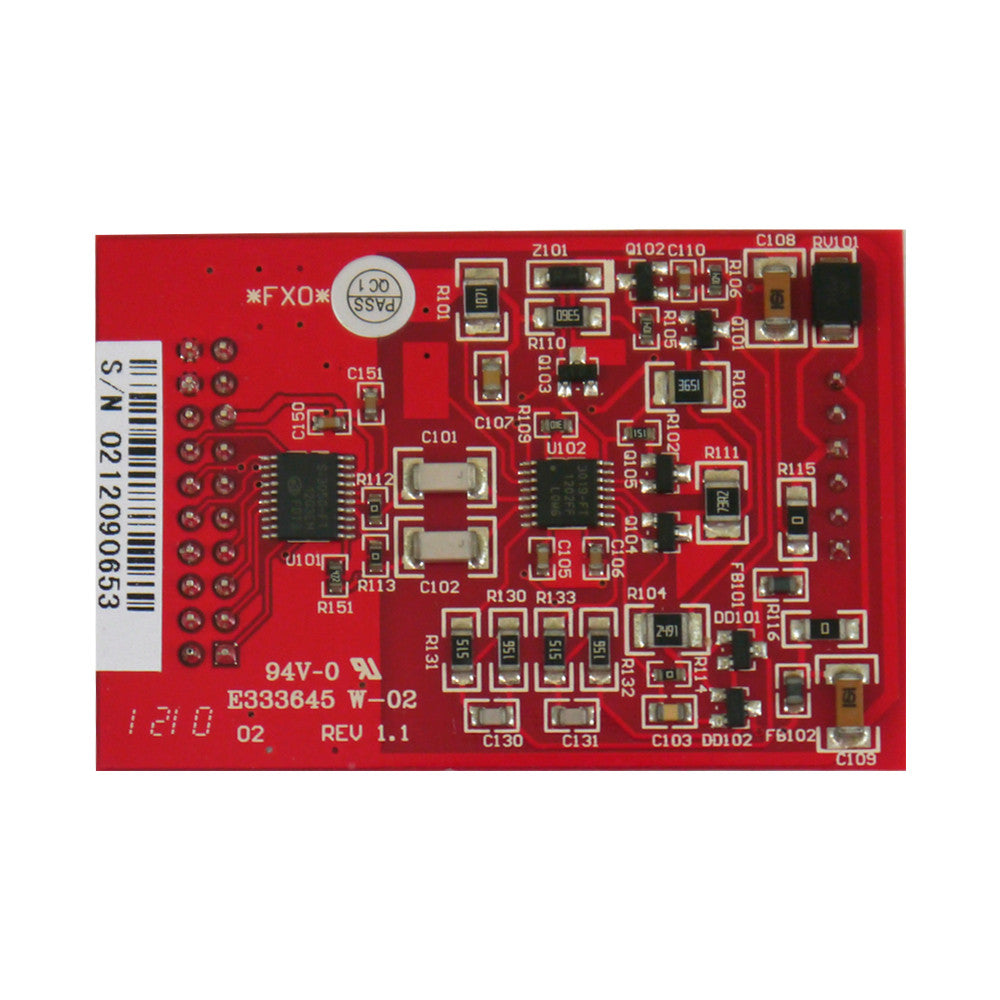

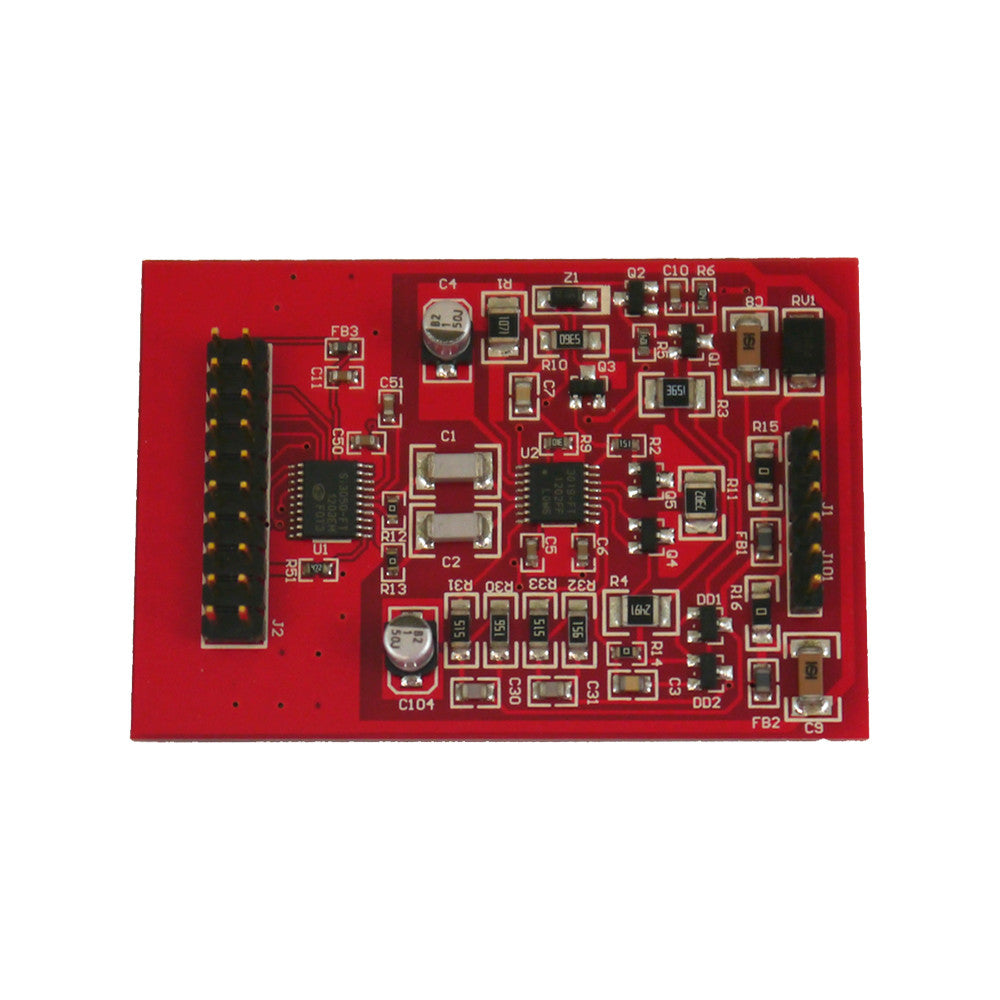

Yeastar O2 module is a module with 2 FXO ports to terminate two analog PSTN (POTS) lines. It is compatible with Yeastar S-Series VoIP PBX.Yeastar O2 module is a module with 2 FXO ports to terminate two analog PSTN (POTS) lines. It is compatible with Yeastar S-Series VoIP PBX.
PRODUCT TYPE
IP Phones
KEY FEATURES
• A module with 2 FXO ports to terminate two analog PSTN(POTS) lines.
• It can be used in MyPBX SOHO, MyPBX Standard, MyPBX Pro, MyPBX E1. MyPBX E1 Plus, MyPBX Enterprise, and TDM800 Card.
• Requires YST-EX08 card when installing on S100 or S300
• Ports: 2 RJ11 FXO Ports
• Supported Model: S412, S20, S50, S100, S300, P550, P560, P570
• Ring Frequency Detection: 15~50 Hz
• Ring Voltage Detection: 30+ VRMS (depend on the FXO mode)
• Termination: PSTN Lines
• Echo Cancellation: Support
• Signaling Modes: Foreign Exchange Office: 2 way connection to PRX or key system trunk.
• Foreign Exchange Station Defined Network: provides access to major carrier services.
• Private Line Automatic Ringdown (PLAR)-point-to-point unswitched connections.
TECHNICAL SPECIFICATIONS
• Brand: Yeastar
• Model: YST-O2
• Product Type: IP Phones
• A module with 2 FXO ports to terminate two analog PSTN(POTS) lines.
• It can be used in MyPBX SOHO, MyPBX Standard, MyPBX Pro, MyPBX E1. MyPBX E1 Plus, MyPBX Enterprise, and TDM800 Card.
• Requires YST-EX08 card when installing on S100 or S300
• Ports: 2 RJ11 FXO Ports
• Supported Model: S412, S20, S50, S100, S300, P550, P560, P570
• Ring Frequency Detection: 15~50 Hz
• Ring Voltage Detection: 30+ VRMS (depend on the FXO mode)
• Termination: PSTN Lines
• Echo Cancellation: Support
• Signaling Modes: Foreign Exchange Office: 2 way connection to PRX or key system trunk.
• Foreign Exchange Station Defined Network: provides access to major carrier services.
• Private Line Automatic Ringdown (PLAR)-point-to-point unswitched connections.
INTENDED USE / APPLICATIONS
• Business voice communications
• Office, reception, and institutional environments
• Integration with compatible SIP/VoIP systems
Need help confirming the right configuration?
Share the model, application or current system. A specialist will help you confirm compatibility.
