YEASTAR

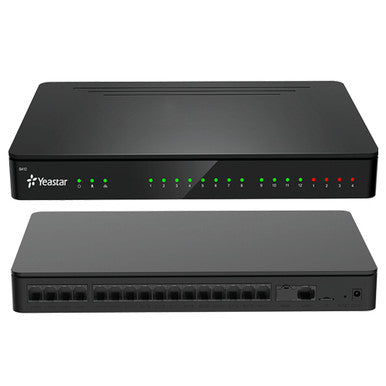

Yeastar YST-S412 VoIP PBX 8 Users 4 Trunks GSM/3G/4G
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
Yeastar S412 is a flexible and modular VoIP PBX engineered for the communications needs of small companies. Yeastar S412 can handle up to 4 CO/BRI lines, up to 12 analog extensions, 2 GSM/3G/4G channels, 8 VoIP extensions, and 4 VoIP trunks, delivering exceptional cost savings, productivity, efficiency improvements and peace of mind.
PRODUCT TYPE
IP Phones
KEY FEATURES
• Capacity: 8 VoIP Users
• 8 Concurrent Calls
• 4 VoIP Trunks
• Interfaces: 8 Fixed RJ11 FXS Ports
• 4 Customizable FXS RJ11 Ports
• Up to 4 Customizable FXO/BRI RJ11 Ports
• Up to 2 Customizable GSM/3G/4G
• Channels: 1 10/100Mbps LAN
• 1 10/100Mbps WAN
• TF Card Slot
• Voice Processing: Protocol: SIP, IAX2
• Transport Protocol: UDP, TCP, TLS, SRTP
• DTMF: In-band, RFC4733, SIP INFO
• Codec: G711 (alaw/ulaw), G722, G726, G729A, GSM, Speex, ADPCM, iLBC, H263, H263P, H264, MPEG4
• FAX: T.30 & T.38 Fax
• Fax to Email
• Incoming Fax Tone Detection
• Physical: Size: 290 mm x 180 mm x 33 mm
TECHNICAL SPECIFICATIONS
• Brand: Yeastar
• Model: YST-S412
• Product Type: IP Phones
• Capacity: 8 VoIP Users
• 8 Concurrent Calls
• 4 VoIP Trunks
• Interfaces: 8 Fixed RJ11 FXS Ports
• 4 Customizable FXS RJ11 Ports
• Up to 4 Customizable FXO/BRI RJ11 Ports
• Up to 2 Customizable GSM/3G/4G
• Channels: 1 10/100Mbps LAN
• 1 10/100Mbps WAN
• TF Card Slot
• Voice Processing: Protocol: SIP, IAX2
• Transport Protocol: UDP, TCP, TLS, SRTP
• DTMF: In-band, RFC4733, SIP INFO
• Codec: G711 (alaw/ulaw), G722, G726, G729A, GSM, Speex, ADPCM, iLBC, H263, H263P, H264, MPEG4
• FAX: T.30 & T.38 Fax
• Fax to Email
• Incoming Fax Tone Detection
• Physical: Size: 290 mm x 180 mm x 33 mm
• Weight: 0.68 kg
• Power Supply: DC 12V 3.33A
• Power Consumption: 9.0-25.6W
• Operation Range: 0°C to 40°C, 32°F to 104°F
• Storage Range:-20°C to 65°C, -4°F to 149°F
• Humidity: 10-90% non-condensing
INTENDED USE / APPLICATIONS
• Business voice communications
• Office, reception, and institutional environments
• Integration with compatible SIP/VoIP systems
