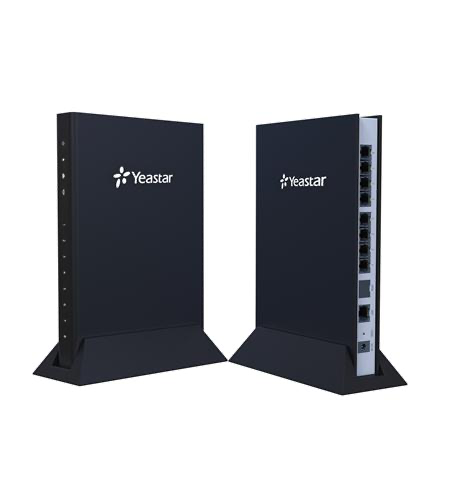

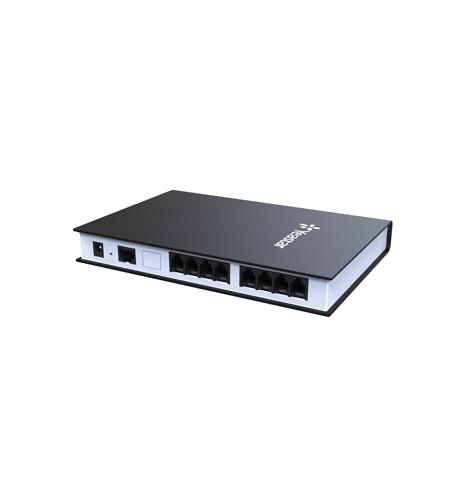

Yeastar YST-TA800 8-Port FXS Analog VoIP Gateway SIP IAX2
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
NeoGate TA Analog VoIP Gateways are cutting-edge products that connect legacy telephones, fax machines, and PBX systems with IP telephony networks and IP-based PBX systems. Featuring rich functionalities and easy configuration, NeoGate TA is ideal for small and medium enterprises that wish to integrate a traditional phone system into an IP-based system. NeoGate TA helps them to preserve previous investments on the legacy telephone system and reduce communication costs significantly with the true benefits of VoIP.
PRODUCT TYPE
IP Phones
KEY FEATURES
• Number of Telephony Ports: 8
• Phone Interface: 8 x RJ11 FXS ports
• Protocol: SIP (RFC3261), IAX2
• Transport Protocol: UDP, TCP, TLS, SRTP
• DTMF: RFC2833, SIP INFO, In-band
• Codec: G.711 a/u-law, G.722, G.726, G.729a, GSM,
• ADPCM, Speex
• Echo Cancellation: ITU-T G.168 LEC
• FAX over IP: T.38 and pass-through
• Signalling: Kewl Start, Loop Start
• Caller ID: BELL202, ETSI (V23), NTT (V23-Japan), and
• DTMF-based CID
• Disconnect Method: Busy Tone, Polarity Reversal
• LAN: 1 (10/100Mbps)
• Network: Static IP, DHCP Client, Firewall, VLAN, DDNS,
• QoS, OpenVPN
• NAT Traversal: Static NAT, STUN
• Size: 200 (L) mm ¡Á 137 (W) mm ¡Á 25.6 (H) mm
TECHNICAL SPECIFICATIONS
• Brand: Yeastar
• Model: YST-TA800
• Product Type: IP Phones
• Number of Telephony Ports: 8
• Phone Interface: 8 x RJ11 FXS ports
• Protocol: SIP (RFC3261), IAX2
• Transport Protocol: UDP, TCP, TLS, SRTP
• DTMF: RFC2833, SIP INFO, In-band
• Codec: G.711 a/u-law, G.722, G.726, G.729a, GSM,
• ADPCM, Speex
• Echo Cancellation: ITU-T G.168 LEC
• FAX over IP: T.38 and pass-through
• Signalling: Kewl Start, Loop Start
• Caller ID: BELL202, ETSI (V23), NTT (V23-Japan), and
• DTMF-based CID
• Disconnect Method: Busy Tone, Polarity Reversal
• LAN: 1 (10/100Mbps)
• Network: Static IP, DHCP Client, Firewall, VLAN, DDNS,
• QoS, OpenVPN
• NAT Traversal: Static NAT, STUN
• Size: 200 (L) mm ¡Á 137 (W) mm ¡Á 25.6 (H) mm
• Power Supply:12V 1.5A
• Operation Range: 0° to 50°C, 32° to 122° F
• Storage Range: -20° to 65°C, 4° to 149° F
• Humidity: 10-90% non-condensing
INTENDED USE / APPLICATIONS
• Business voice communications
• Office, reception, and institutional environments
• Integration with compatible SIP/VoIP systems
