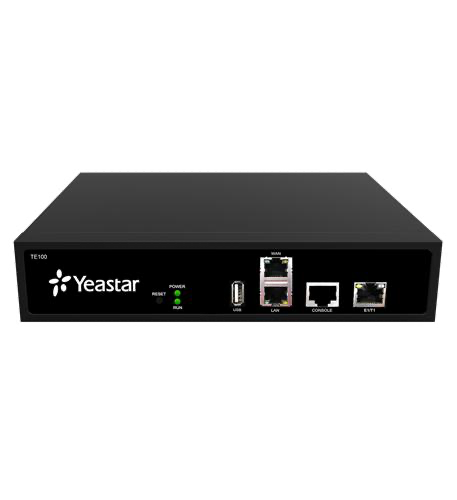

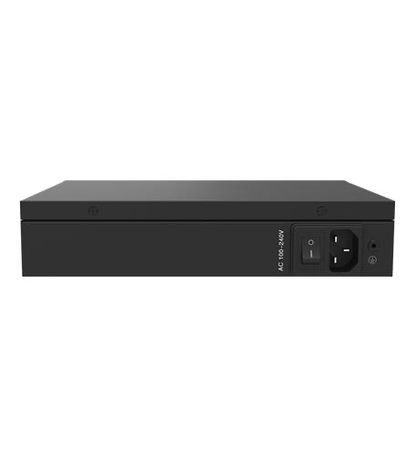

Yeastar YST-TE100 NeoGate TE100 VoIP E1/T1/J1 Gateway 30 Calls SIP
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
NeoGate TE100 is a single port VoIP E1/ T1 /J1 gateway (VoIP to E1/ T1 /J1, and E1/ T1 /J1 to VoIP) that supports up to 30 concurrent calls. It’s designed to bridge the gap between E1/ T1 /J1 and VoIP networks.
PRODUCT TYPE
IP Phones
KEY FEATURES
• NeoGate TE100 is a single port VoIP E1/ T1 /J1 gateway (VoIP to E1/ T1 /J1, and E1/ T1 /J1 to VoIP) that supports up to 30 concurrent calls. It’s designed to bridge the gap between E1/ T1 /J1 and VoIP networks.
• TE100 offers SMBs cost effective additions to an legacy telephone system to bring the true benefits of VoIP. Integrating TE100 into an existing network will allow for inexpensive communication via SIP trunking. Also, it could connect VoIP systems with E1/T1/J1 service from legacy carriers.
• E1/T1/J1 Port: 1 (Support PRI, MFC R2, SS7)
• Protocol: SIP (RFC3261), IAX2
• Transport Protocol: UDP, TCP, TLS, SRTP
• DTMF: RFC2833, SIP INFO, In-band
• Codec: G.711 a/u-law, G.722, G.726, G.729 A, GSM,
• ADPCM, Speex
• LAN: 10/100 Mbps
• WAN: 10/100 Mbps
• Size: 213x160x44mm
• Power Supply: AC 100~240V,50~60Hz (DC 12V, 1A)
TECHNICAL SPECIFICATIONS
• Brand: Yeastar
• Model: YST-TE100
• Product Type: IP Phones
• NeoGate TE100 is a single port VoIP E1/ T1 /J1 gateway (VoIP to E1/ T1 /J1, and E1/ T1 /J1 to VoIP) that supports up to 30 concurrent calls. It’s designed to bridge the gap between E1/ T1 /J1 and VoIP networks.
• TE100 offers SMBs cost effective additions to an legacy telephone system to bring the true benefits of VoIP. Integrating TE100 into an existing network will allow for inexpensive communication via SIP trunking. Also, it could connect VoIP systems with E1/T1/J1 service from legacy carriers.
• E1/T1/J1 Port: 1 (Support PRI, MFC R2, SS7)
• Protocol: SIP (RFC3261), IAX2
• Transport Protocol: UDP, TCP, TLS, SRTP
• DTMF: RFC2833, SIP INFO, In-band
• Codec: G.711 a/u-law, G.722, G.726, G.729 A, GSM,
• ADPCM, Speex
• LAN: 10/100 Mbps
• WAN: 10/100 Mbps
• Size: 213x160x44mm
• Power Supply: AC 100~240V,50~60Hz (DC 12V, 1A)
INTENDED USE / APPLICATIONS
• Business voice communications
• Office, reception, and institutional environments
• Integration with compatible SIP/VoIP systems
