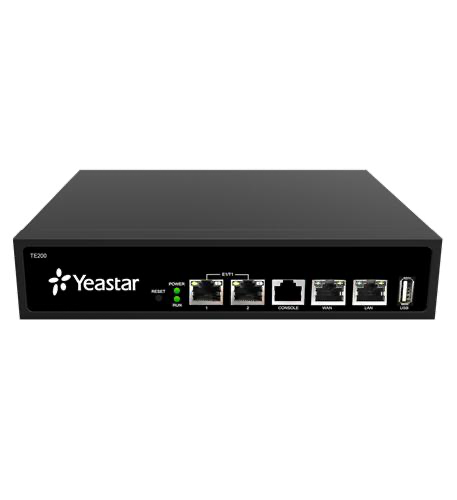

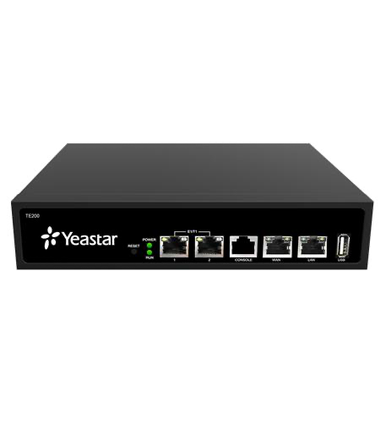

Yeastar YST-TE200 NeoGate TE200 Dual-Port E1/T1/J1 VoIP Gateway 60-Call
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
NeoGate TE200 is a dual port VoIP E1/ T1 /J1 gateway (VoIP to E1/ T1 /J1, and E1/ T1 /J1 to VoIP) that supports up to 60 concurrent calls. It is designed to bridge the gap between E1/ T1 /J1 and VoIP networks.
PRODUCT TYPE
IP Phones
KEY FEATURES
• E1/T1/J1 Port: 2 (Support PRI, MFC R2, SS7)
• Protocol: SIP (RFC3261), IAX2
• Transport Protocol: UDP, TCP, TLS, SRTP
• DTMF: RFC2833, SIP INFO, In-band
• Codec: G.711 a/u-law, G.722, G.726, G.729 A, GSM,
• ADPCM, Speex
• LAN: 10/100/1000 Mbps
• WAN: 10/100/1000 Mbps
• Size: 213x160x44mm
• Power Supply: AC 100~240V,50~60Hz (DC 12V, 1A)
TECHNICAL SPECIFICATIONS
• Brand: Yeastar
• Model: YST-TE200
• Product Type: IP Phones
• E1/T1/J1 Port: 2 (Support PRI, MFC R2, SS7)
• Protocol: SIP (RFC3261), IAX2
• Transport Protocol: UDP, TCP, TLS, SRTP
• DTMF: RFC2833, SIP INFO, In-band
• Codec: G.711 a/u-law, G.722, G.726, G.729 A, GSM,
• ADPCM, Speex
• LAN: 10/100/1000 Mbps
• WAN: 10/100/1000 Mbps
• Size: 213x160x44mm
• Power Supply: AC 100~240V,50~60Hz (DC 12V, 1A)
INTENDED USE / APPLICATIONS
• Business voice communications
• Office, reception, and institutional environments
• Integration with compatible SIP/VoIP systems
